BANCS D'ESSAIS POUR LES EQUIPEMENTIERS

Nos principales réalisations en bancs d'essais pour composants hydrauliques



Stacks Image 393

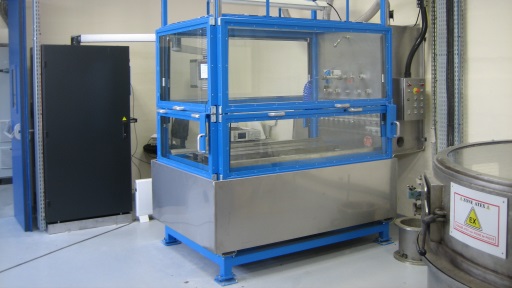

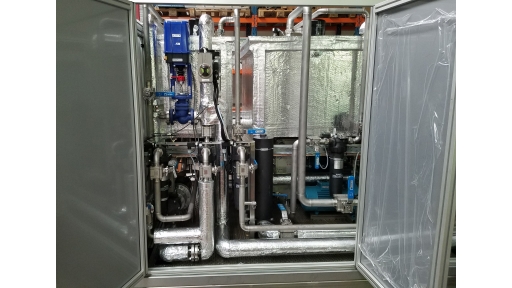

Bench : Cavitation test chamber
Customer : SAFRAN LANDING SYSTEMS
Year : 2021
Program :
Enclosure simulating the hydraulic isometry of an aircraft system for the search of a malfunction in the system.


Stacks Image 425

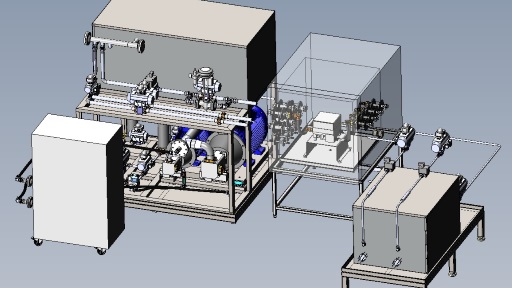

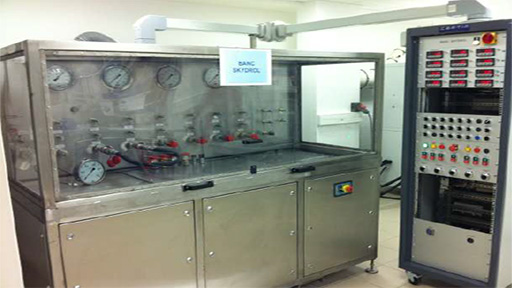

Bench : Skydrol manifolds test bench
Customer : CIRCOR
Year : 2019
Program : AIRBUS A350
Description : acceptance tests for A350 Skydrol manifolds with Skydrol power plant and monitoring bay





Stacks Image 410

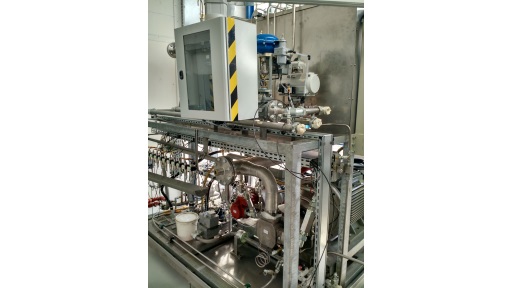

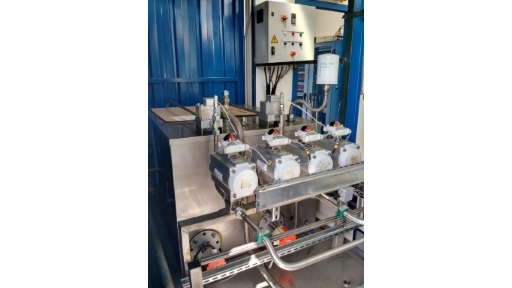

Bench : Aircraft and industrial gear boxes lubrication power unit
Customer : SAFRAN TRANSMISSION POWER
Year : 2018
Program : development
Description : Aircraft gear box : up to 700 l/h at 7 bar from 60°C to 110°C
Industrial gear box : up to 6000 l/h at 2 bar and 60°C

Stacks Image 415
Stacks Image 418


Stacks Image 384

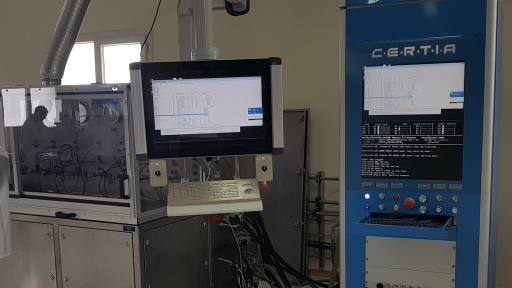

Bench : fuel injectors test bench
Customer : AIR ALGERIE
Year : 2016
Program : multi-programs
Description : acceptance tests for fuel injectors done in ATEX environment with integrated power plant and control and monitoring bay


Stacks Image 354
Bench : PCU OPEN ROTOR test bench
Customer : ***
Year : 2015
Program : OPEN ROTOR
Description : high temperature tests for Pitch Control Unit of OPEN ROTOR development program with its hydraulic power plant and its control and monitoring bay
Stacks Image 356
Stacks Image 358


Stacks Image 348
Bench : Fuel components test bench
Customer : ***
Year : 2013
Program : M53, M88
Description : acceptance tests for M53 and M88 fuel components with Fuel power plant and control and monitoring bay in ATEX environment
Stacks Image 350


Stacks Image 51

Skydrol manifolds test bench
Customer : INDUSTRIA
Year : 2014
Program :AIRBUS A350
Description :acceptance tests for A350 Skydrol manifolds with Skydrol power plant and control and monitoring bay



Stacks Image 264

Skydrol manifolds test bench
Customer : INDUSTRIA
Year : 2010
Program : AIRBUS A350
Description : acceptance tests for A350 Skydrol manifolds with Skydrol power plant and control and monitoring bay


Stacks Image 237

Skydrol manifolds test bench
Customer : SAFRAN
Year : 2009
Program : multi-programs
Description : automatic acceptance tests for large range of Skydrol manifolds with control and monitoring bay


Stacks Image 239

Skydrol manifolds test bench
Customer : SAFRAN
Year : 2005
Program : AIRBUS A380
Description : automatic acceptance tests for A380 Skydrol manifolds with control and monitoring bay



Stacks Image 267

Mineral oil manifolds test bench
Customer : INDUSTRIA
Year : 2010
Program : AIRBUS A350
Description : acceptance tests for A350 FH42 manifolds with FH42 power plant and control and monitoring bay




Stacks Image 286

Fuel injectors test bench
Customer : AIR ALGERIE
Year : 2008
Program : multi-programs
Description : acceptance tests for fuel injectors done in ATEX environment with integrated power plant and control and monitoring bay


Stacks Image 296

Automatic fuel pumps test bench
Customer : AIR FRANCE INDUSTRIES
Year : 2005
Program : multi-programs
Description : automatic acceptance tests for large range of fuel pumps with control and monitoring bay in ATEX environment



Stacks Image 313

Banc intégration circuit carburant TP400
Customer : SAFRAN
Year : 2006
Program : A400M



Stacks Image 315

Banc pompes POA
Customer : SAFRAN
Year : 2004
Program : POA


Stacks Image 331

Banc pompes A380
Customer : GOODRICH
Year : 2003
Program : A380
